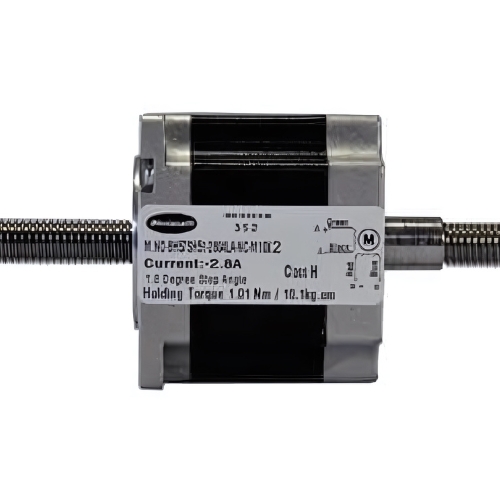

10.1 kg cm NON CAPTIVE LINEAR ACTUATOR STEPPER MOTOR (2.8 Amp Motor) - M10X2
SKU - BH57SH51-2804LA-NC-TR8X8
₹10,643.00
₹17,030.00
Customize
Product Full Name :
10.1 kg cm NON CAPTIVE LINEAR ACTUATOR STEPPER MOTOR (2.8 Amp Motor) - M10X2 Full Product Name
Description :
1.8⁰ Non Captive Linear Actuator Stepper Motors High Torque Hybrid, BH57SH51-2804 LA-NC-TR8X8, NEMA 23(57 mm) Frame size, Bipolar (4 leads), Holding Torque 10.1 kgcm (1.01 Nm), Current per phase 2.8 Amp, Motor length 51 mm, 300mm Wire Length, Operating Voltage 12 - 24 VDC. Linear Step Size - 40 Microns Per Full Step, Pitch - TR8X8 In stock:
3
