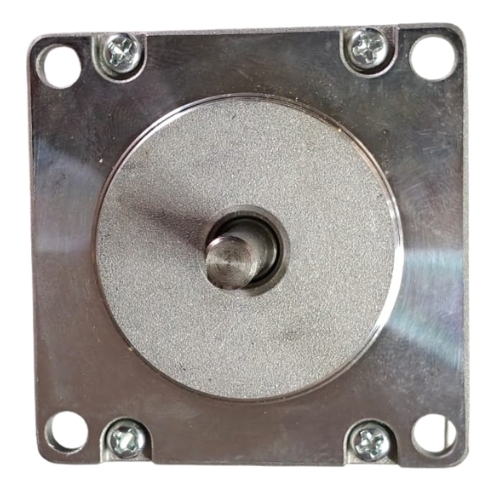

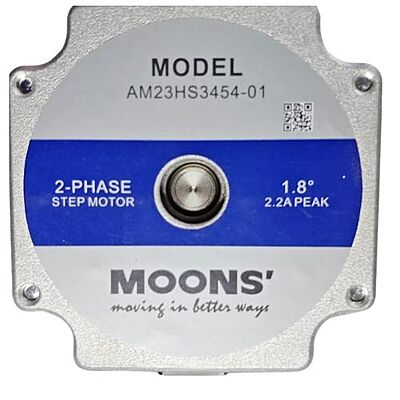

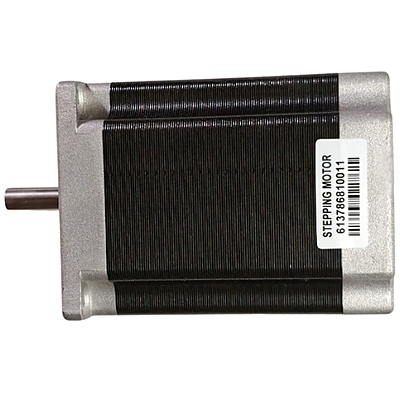

NEMA23(56mm) 1.8°2 Phase Hybrid Stepper Motors, Single Shaft, Body Length 76.0mm, Holding Torque 2.1N.m, Rated Current 1.8A, Rotor Inertia 460.0gcm2
Price:
₹3,152.00
● Step Accuracy ±5% ● Axial load 40N(9 Lbs.)Push ● Axial load 130N(30 Lbs.)Pull ● Radial load 70N(15.5 Lbs.)at the flat center ● IP Rating 40 ● Excellent performance with SR/STF stepper drivers
Customize
1. 2-Phase Hybrid Stepper Motor: Ensures smooth operation with precise control. 2. Compatible with Microstepping Drivers: Works well with drivers that support finer step resolutions.
1. Holding Torque: 2.1 N·m 2. Rated Current: 1.8 A 3. Rotor Inertia: 460.0 g·cm² 4. Step Angle: 1.8° 5. Body Length: 76.0 mm 6. Frame Size: 56 mm 7. Shaft Type: Single shaft 8. Phase Configuration: 2-phase
