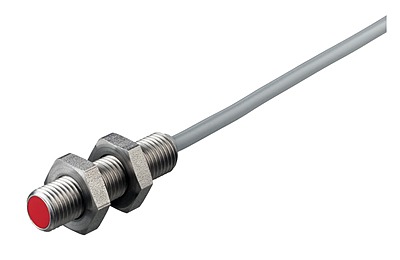

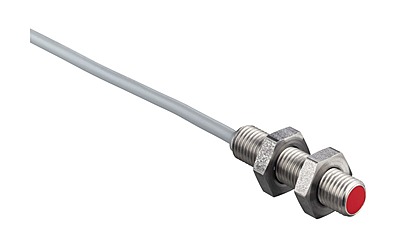

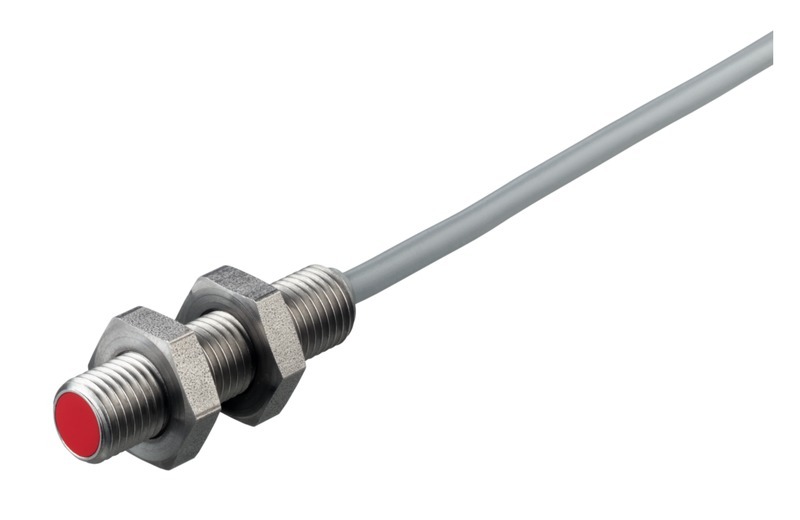

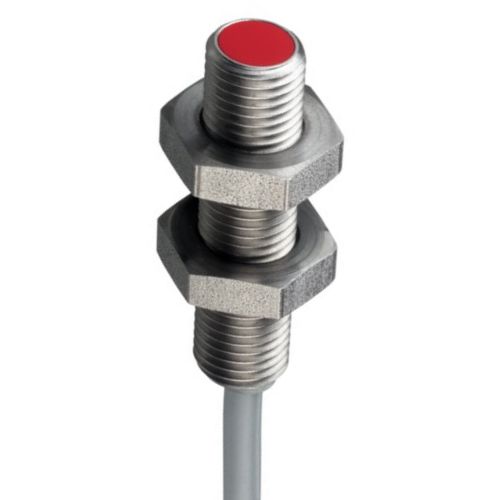

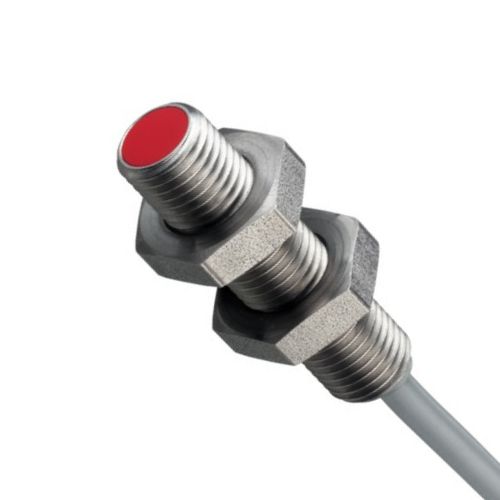

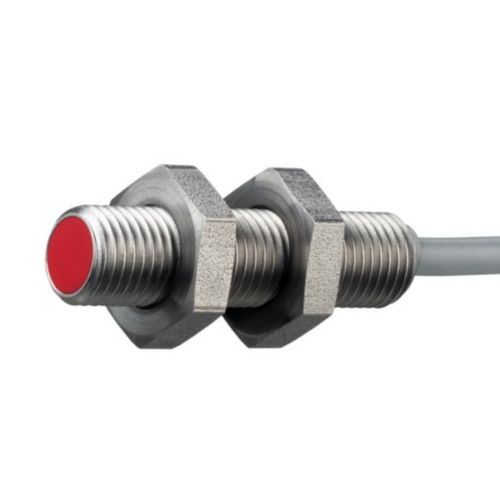

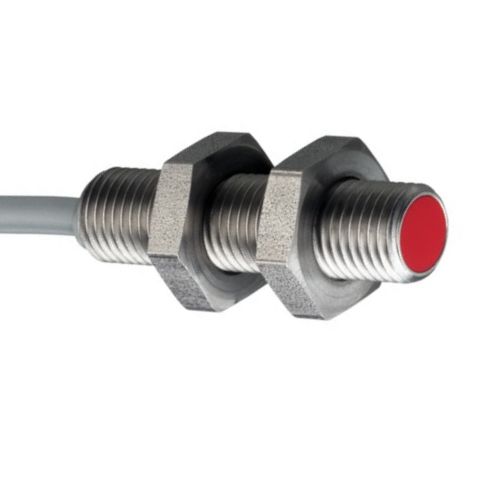

IS 108 MM/4NO-2E0 - Inductive switch
Price:
₹750.00
IS 108 MM/4NO-2E0 - Inductive switch
Customize
1. Sensing Distance: Typical operating range limit of 2 mm, with an actual operating range up to 1.6 mm. 2. Output Configuration: PNP transistor with a normally open (NO) switching function. 3. Construction: Cylindrical M8 x 1 mm threaded metal housing, suitable for embedded installation. 4. Connection Interface: 4-pin M12 male connector made of metal, ensuring secure and reliable connections. 5. Indicator: Equipped with a yellow LED for clear status indication.
1. Supply Voltage: 10 to 30 V DC 2. Current Consumption: 0 to 10 mA 3. Switching Current: Up to 100 mA 4. Switching Frequency: Up to 3,000 Hz 5. Voltage Drop: ≤ 2 V 6. Residual Current: ≤ 0.01 mA 7. Temperature Drift: Maximum of 10% of the sensing range 8. Repeatability: Maximum of 1% of the sensing range 9. Switching Hysteresis: Approximately 15% 10. Operating Temperature Range: -25°C to +70°C 11. Protection Class: IP67, ensuring resistance against dust and water ingress 12. Housing Material: Nickel-plated brass for durability
