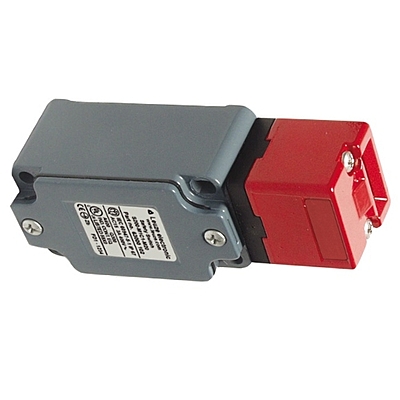

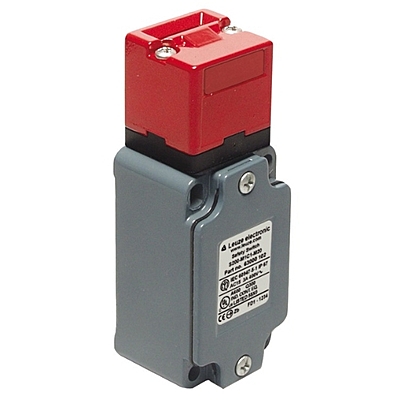

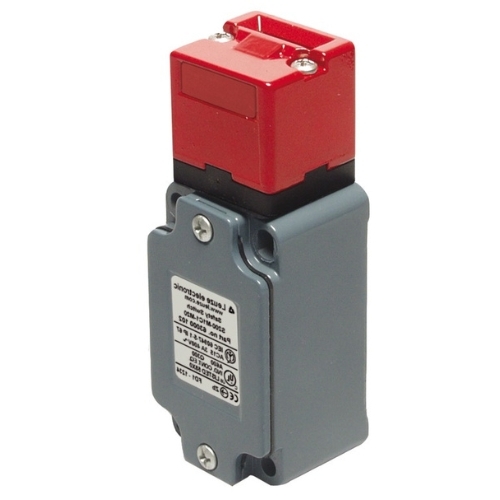

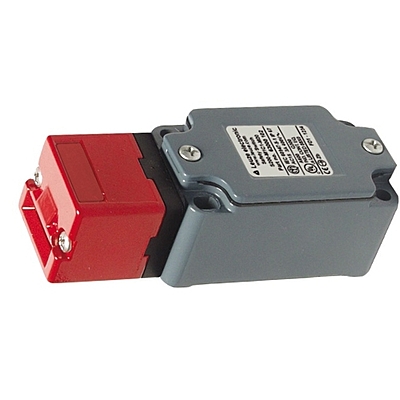

Leuze S200-M1C1-M20 Safety switch
Price:
₹2,550.00
Interlock device without guard interlocking, ISO 14119 Contact allocation 1NC + 1NO Rated insulation voltage 500 V AC, 600 V DC Conventional thermal current, max.10 A Connection Number of connections1 Piece(s) Number of cable entries1 Piece(s) Connection 1 Function Contact connection Type of connection Terminal Type of terminal Screw terminal No. of pins 4 -pin
Customize

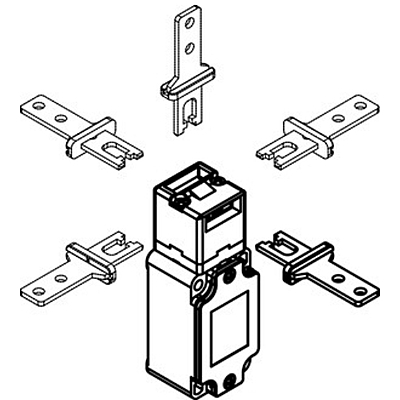

1. Safety Switch Type: Mechanical, tongue-actuated. 2. Contact Configuration: 1 NC (Normally Closed) + 1 NO (Normally Open). 3. Switching Mechanism: Slow-action contacts with force-guided (positive opening) NC contact. 4. Actuator Insertion: Funnel-shaped for self-centering and secure engagement. 5. Actuation Directions: 5 possible directions – 1 top, 4 sides (90°). 6. Head Orientation: Adjustable actuator head for flexible installation. 7. Housing Material: Durable ZAMAK metal alloy body. 8. Protection Rating: IP67 – dust-tight and water-jet resistant. 9. Mounting Type: Through-hole mounting. 10. Cable Entry: M20 x 1.5 thread for cable gland or conduit. 11. High Reliability: Mechanical life of 1 million operations. 12. Safety Ratings: SIL 3 (IEC 61508) PL e (ISO 13849-1) Type 2 interlocking device (EN ISO 14119)
1. Rated Insulation Voltage (Ui): 500 V AC / 600 V DC 2. Thermal Current (Ith): 10 A 3. Utilization Categories: AC-15: 250 V / 6 A, 400 V / 4 A, 500 V / 1 A DC-13: 24 V / 6 A, 125 V / 1.1 A, 250 V / 0.4 A 4. Short Circuit Protection: 500 V, 10 A, gG or aM fuse 5. Contact Material: Silver alloy 6. Connection Type: Screw terminals 7. Cable Cross Section: 1 x 0.34 mm² to 2 x 1.5 mm² 8. Approach Speed (Actuation): 0 to 0.5 m/s 9. Extraction Force (to remove actuator): 10 N 10. Mechanical Life: 1 million operations 11. Head Rotation: Yes (adjustable) 12. Ambient Temperature Range: –25°C to +80°C
