Leuze-Optical distance sensor ODSL8/V66-200-S12
/
Leuze ODSL8/V66-200-S12 Optical Distance Sensor for Precise Measurement – SmidMart
Leuze ODSL8/V66-200-S12 Optical Distance Sensor for Precise Measurement – SmidMart
Leuze ODSL8/V66-200-S12 Optical Distance Sensor for Precise Measurement – SmidMart
Leuze-Optical distance sensor ODSL8/V66-200-S12
Leuze ODSL8/V66-200-S12 Optical Distance Sensor for Precise Measurement – SmidMart

Leuze-Optical distance sensor ODSL8/V66-200-S12

Price:
₹33,000.00

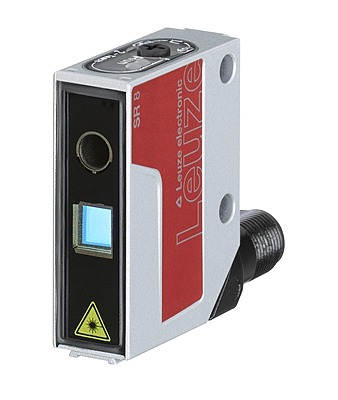

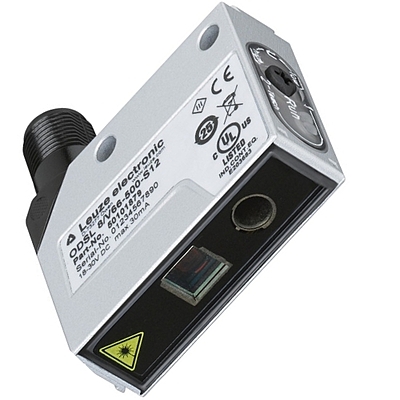

Leuze ODSL 8/V66‑200‑S12 is a compact laser-based optical distance sensor (Class 2 laser, 650 nm) with a 20–200 mm measurement range, 0.1–0.2 mm resolution, voltage output, and M12 connector. It features high accuracy (~±2%), IP67 metal housing, built-in teach-in rotary switch, and runs on 18–30 V DC.
Product Details
1. Measurement Range: 20 to 200 mm 2. Resolution: 0.1 to 0.2 mm 3. Accuracy: ±2% of the measurement distance 4. Repeatability: ±1% of the measurement distance 5. Light Source: Red light laser with a wavelength of 650 nm 6. Light Spot Size: Approximately 1 mm at 200 mm distance 7. Measurement Principle: Triangulation
1. Supply Voltage: 18 to 30 V DC 2. Analog Output: 1 voltage output 3. Digital Switching Outputs: 2 push-pull outputs 4. Connector: M12 turning connector 5. Measurement Time: 2 to 7 ms 6. Protection Class: IP67 and IP69K, suitable for high-pressure cleaning conditions
