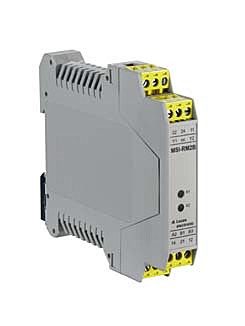

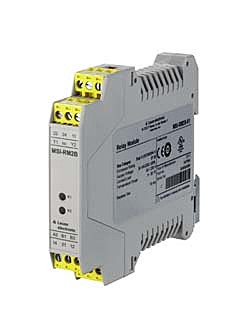

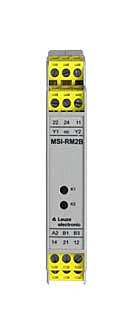

Leuze Safety Relay MSI-RM2B-01
Non-returnable
Price:
₹19,200.00
Out of stock
Leuze Safety Relay MSI-RM2B-01
Customize
1. Dual-channel safety relay 2. Suitable for safety light curtains/scanners 3. 2 enabling (NO) safety contacts 4. Manual or automatic reset 5. Compact 22.5 mm DIN-rail housing 6. LED status indicators 7. Category 4 / PL e (ISO 13849-1) compliant 8. Fast response time 9. Screw terminal connections
1. Supply voltage: 24 V DC 2. Safety outputs: 2 NO contacts 3. Auxiliary output: 1 NC contact 4. Reset mode: Manual/Automatic 5. Response time: Less than 20 ms 6. Power consumption: Less than 2 W 7. Housing width: 22.5 mm 8. Mounting: DIN rail 9. Connection: Screw terminals 10. Safety level: Cat. 4 / PL e (EN ISO 13849-1) 11. Operating temp: -25°C to +55°C 12. Protection: IP20
