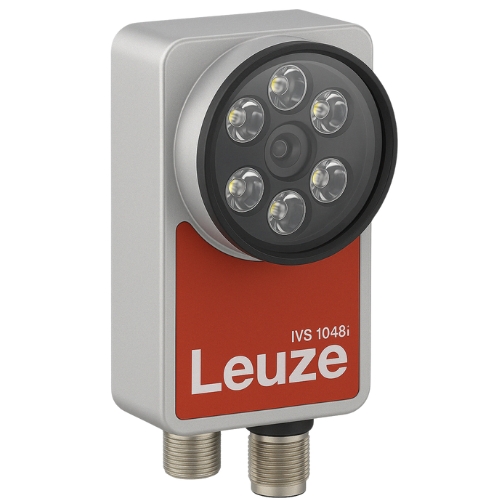

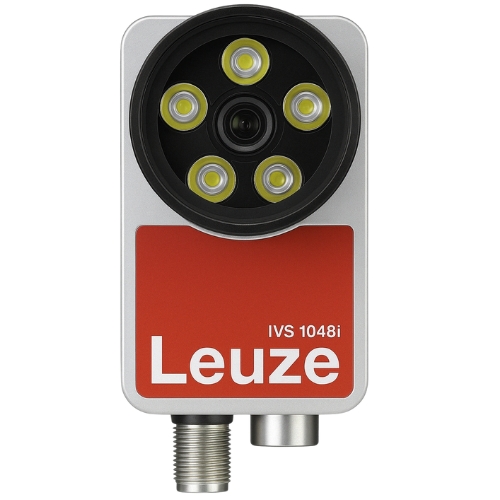

Leuze IVS 1048i ADJ-8F4-102-M4-TMEC Vision sensor
Price:
₹160,000.00
Out of stock
IVS 1048i ADJ-8F4-102-M4-TMEC Vision sensor
Customize
1. High-Resolution Imaging: 1.5 Megapixel sensor (1440 × 1080 pixels) for precise inspection. 2. Fast Global Shutter Camera: Sony global shutter eliminates motion blur for moving objects. 3. Advanced Inspection Tools: Detects surfaces, edges, forms, brightness, contrast, and pixel counts. 4. Integrated Illumination: Switchable red/white LEDs built in for reliable lighting without extra accessories. 5. Flexible Measurement Capabilities: Measures distances, angles, circles, points, and lines. 6. Multi-Protocol Communication: Ethernet with TCP/IP, UDP, FTP/SFTP, and PROFINET support. 7. Easy Integration: 3 digital inputs and 5 digital outputs (push-pull type). 8. Rugged Industrial Design: IP67-rated die-cast zinc housing for harsh environments. 9. Wide Operating Range: Reading distance from 50 mm to 2,000 mm 10. User-Friendly Software: Preconfigured tools simplify setup and deployment without needing expert vision programming.
1. Image Sensor: 1.5 Megapixel (1440 × 1080 px), Sony global shutter (monochrome) 2. Focal Length: 8 mm lens 3. Working Distance: 50 mm to 2,000 mm 4. Lighting: Integrated, switchable red/white LED illumination 5. Shutter Speed: 0.025 ms to 2 ms (adjustable) 6. Inputs: 3 digital inputs 7. Outputs: 5 digital outputs (push-pull, max. 100 mA each) 8. Communication Interface: Ethernet (TCP/IP, UDP, FTP/SFTP, PROFINET) 9. Supply Voltage: 18–30 V DC 10. Power Consumption: Max. 24 W 11. Protection Class: IP67 (dust-tight and water-resistant) 12. Operating Temperature: 0°C to +50°C 13. Housing Material: Die-cast zinc with PMMA lens cover 14. Dimensions: 45 mm (W) × 85 mm (H) × 35 mm (L) 15. Certifications: CE, RoHS, EMC (EN 61000-6-2, EN 61000-6-3)
