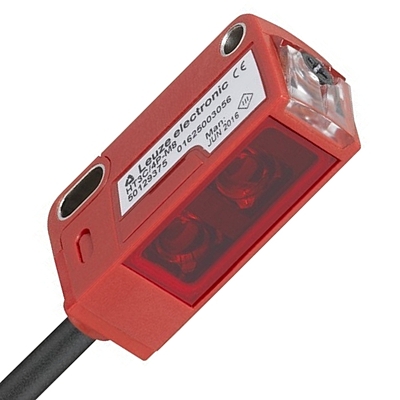

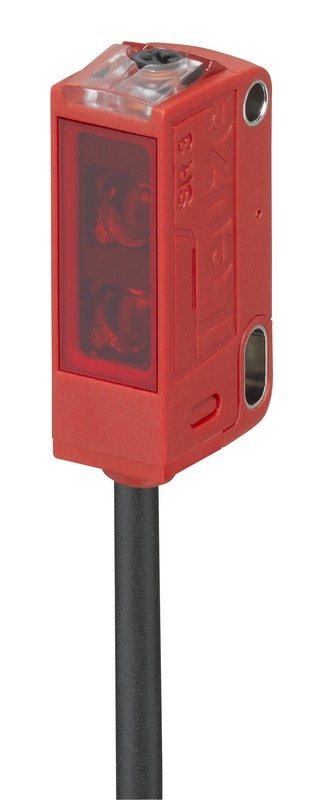

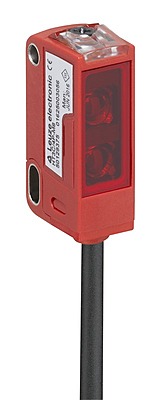

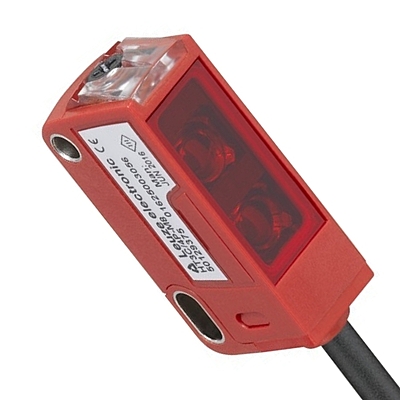

Leuze HT3C/4P - Diffuse sensor with background suppression
₹3,240.00
Features / Functions
1. Operating Range: 5 mm to 450 mm, adjustable via a multiturn potentiometer. 2. Light Source: Red LED with a wavelength of 633 nm. 3. Black-White Error: Less than 10% up to 220 mm, ensuring consistent detection across varying surface colors. 4. Light Spot Geometry: Square-shaped, focused beam with a fixed focal distance of 200 mm. Specifications
1. Supply Voltage: 10 to 30 V DC 2. Current Consumption: 0 to 15 mA 3. Protective Features: Includes polarity reversal protection and short-circuit protection. 4. Switching Outputs: Two PNP transistor outputs 5. Mounting Options: Through-hole mounting or optional mounting devices 6. Connection: Available with an M8 connector Choose Quantity
