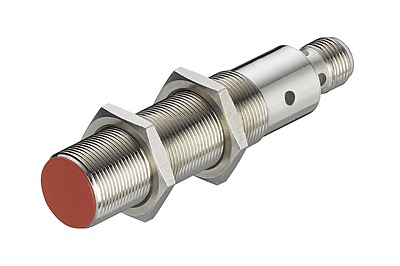

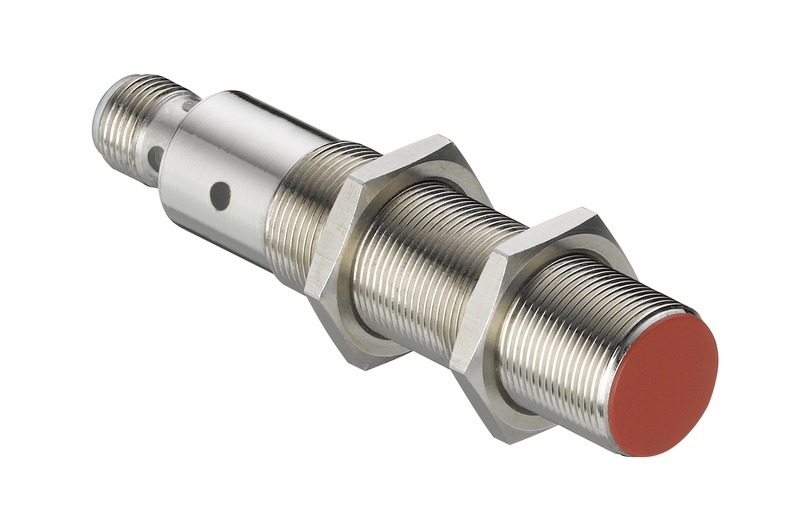

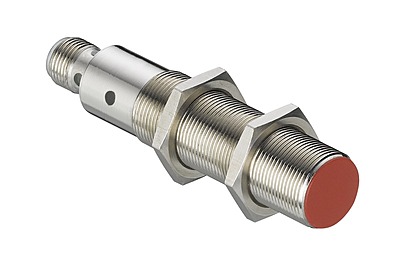

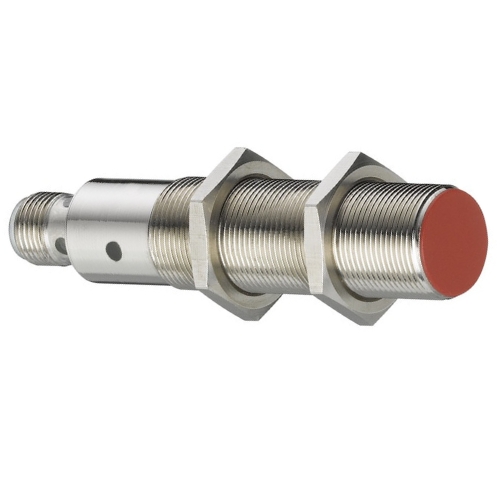

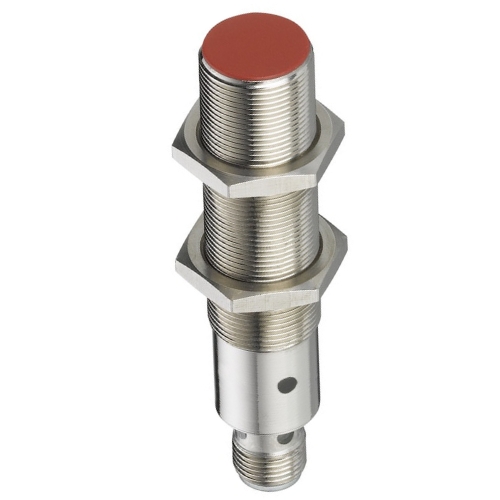

LCS-2M12B-F03PNO-M12 - Capacitive sensor
Price:
₹1,814.00
LCS-2M12B-F03PNO-M12 - Capacitive sensor
Customize

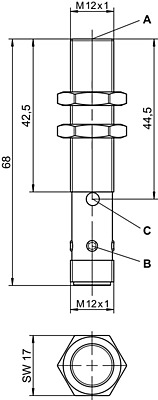

1. Sensing Distance: Adjustable between 1 to 3 mm, with an assured switching distance of 2.4 mm. 2. Output Configuration: PNP transistor with normally open (NO) switching function. 3. Construction: Cylindrical M12 x 1 mm threaded metal housing, suitable for embedded installation. 4. Connection Interface: 4-pin M12 connector for secure and reliable connections. 5. Adjustability: Equipped with a multiturn potentiometer for sensitivity adjustments. 6. Indicator: Features an LED for status indication.
1. Supply Voltage: 10 to 30 V DC 2. Current Consumption: 10 mA 3. Rated Operating Current: Up to 200 mA 4. Switching Frequency: 100 Hz 5. Operating Temperature Range: -25°C to +70°C 6. Protection Class: IP67, ensuring resistance against dust and water ingress.
