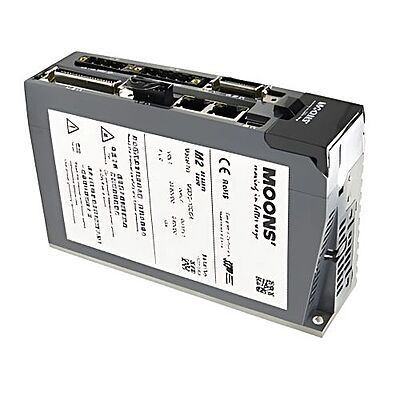

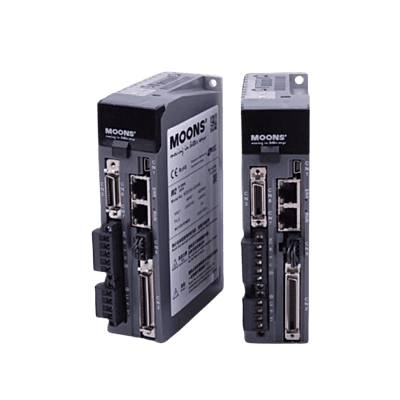

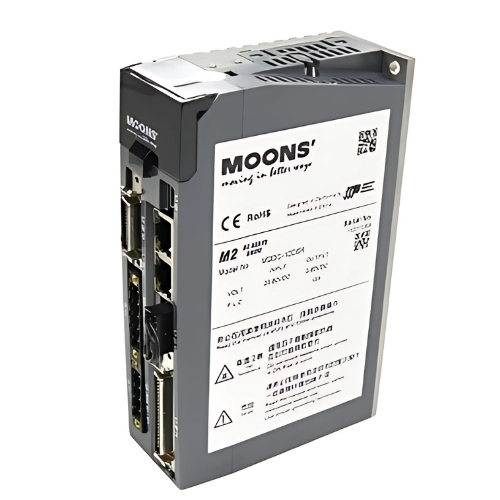

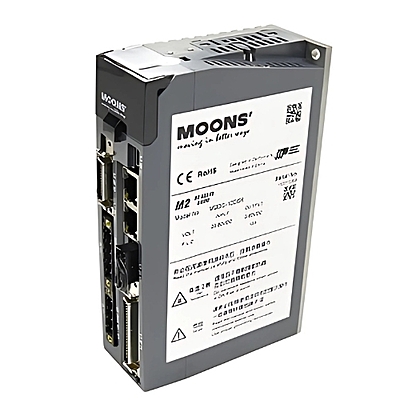

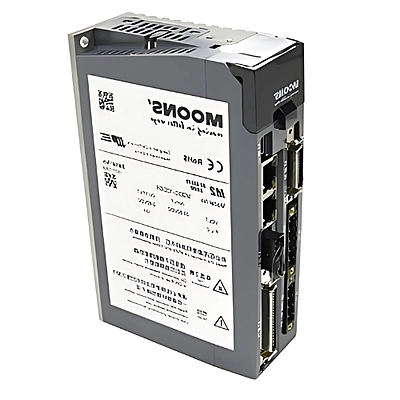

Moons M2DC-10D5R 20-60V DC Servo Drive Output Current, Continuous 10A
Non-returnable
Price:
₹17,363.00
Out of stock
Moons M2DC-10D5R 20-60V DC Servo Drive Output Current Continuous 10A
Customize
1. Auto-Tuning: Simplifies setup by automatically adjusting parameters for optimal performance. 2. Anti-Vibration Function: Incorporates notch filters and vibration damping to minimize system resonance and enhance stability. 3. Safe Torque Off (STO): Provides hardware-level safety by cutting off motor current during emergencies, preventing unexpected restarts. 4. Internal Regeneration Resistor: Manages energy dissipation during deceleration, ensuring system reliability. 5. Q Programming: Allows for the creation of standalone motion programs stored directly in the drive, enabling complex motion control without continuous host communication.
1. Input Voltage: 20–60 V DC 2. Continuous Output Current: 10 A 3. Peak Output Current: 30 A 4. Control Modes: Pulse Mode: Supports STEP/DIR, CW/CCW, and A/B quadrature pulse inputs. Analog Control: Allows for torque, velocity, and position control via analog signals. Velocity Mode: Enables precise speed regulation. Torque Mode: Provides accurate torque control. 5. Communication Interface: RS-485 (Modbus/RTU) Facilitates integration into industrial networks.
