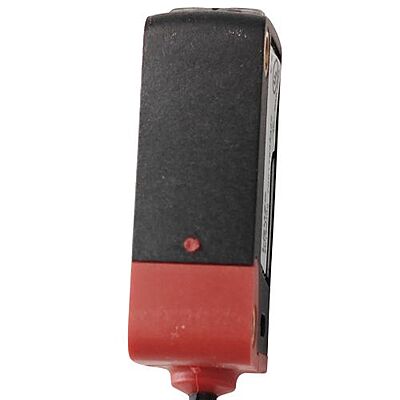

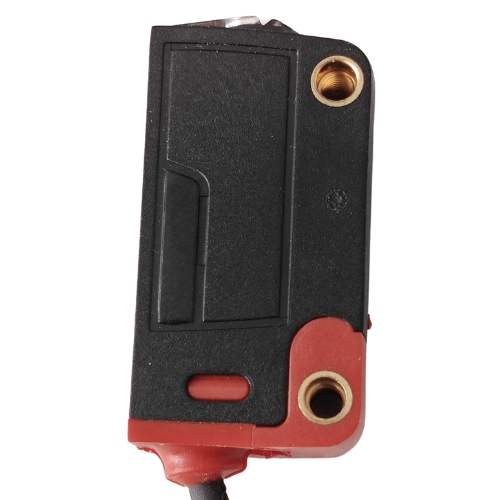

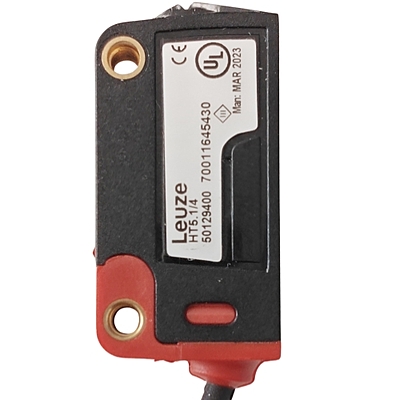

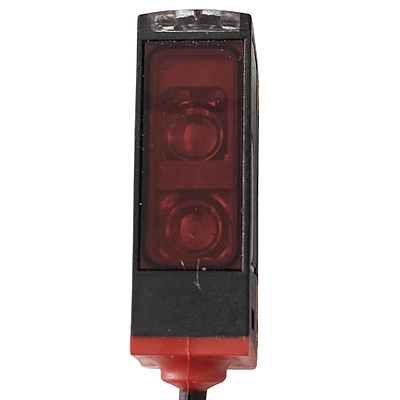

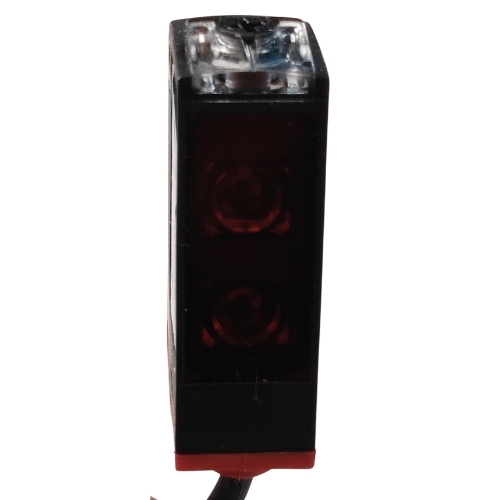

LeuzeHT5.1/4 - Diffuse sensor with background suppression
Price:
₹2,535.00
Out of stock
HT5.1/4 - Diffuse sensor with background suppression
Customize
1. Operating Principle: Diffuse reflection with background suppression. 2. Light Source: Red LED (645 nm). 3. Sensing Range: a. White (90% reflectivity): 5 mm to 400 mm. b. Gray (18% reflectivity): 10 mm to 300 mm. c. Black (6% reflectivity): 15 mm to 200 mm. 4. Adjustment Range: 15 mm to 400 mm. 5. Beam Path: Focused. 6. Light Spot Geometry: Round. 7. Focal Distance: 200 mm (fixed). 8. Black-White Error: Less than 15% up to 200 mm.
1. Supply Voltage: 10–30 V DC 2. Residual Ripple: 0–15% of supply voltage 3. Open-Circuit Current: 0–15 mA 4. Switching Output: 1 PNP transistor (light switching) 5. Switching Frequency: 1,000 Hz 6. Response Time: 0.5 ms 7. Readiness Delay: 300 ms 8. Protective Circuits: Polarity reversal and short-circuit protection 9. Connection Type: 3-wire cable 10. Cable Length: 2,000 mm 11. Sheathing Material: PUR 12. Wire Cross Section: 0.2 mm² 13. Operational Controls: Multiturn potentiometer for range adjustment 14. Operating Temperature: -40°C to +60°C 15. Storage Temperature: -40°C to +70°C 16. Protection Class: IP67
