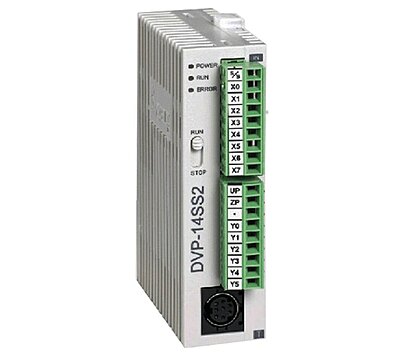

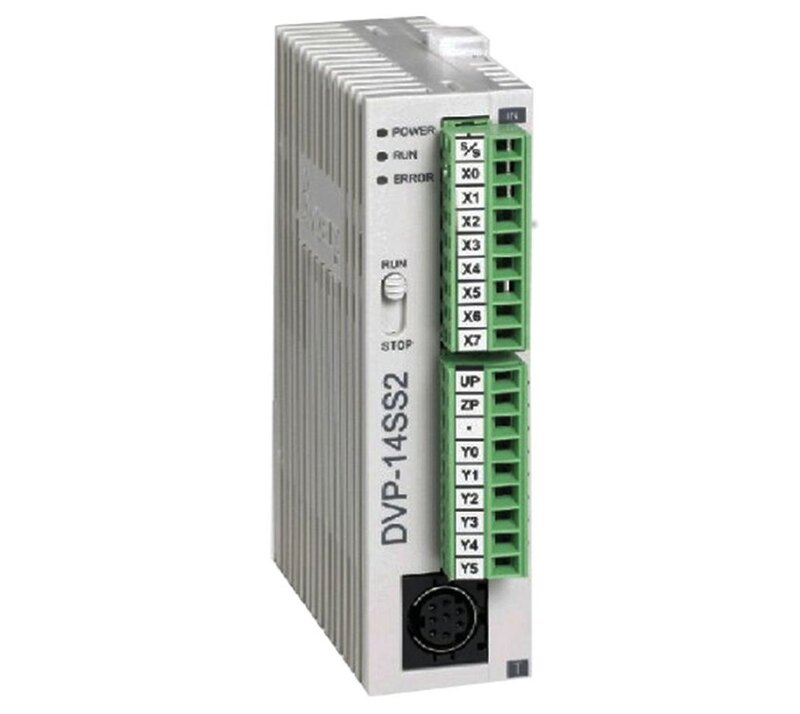

Delta -DVP14SS211T 14(8DI + 6DO)
Price:
₹9,200.00
Delta -DVP14SS211T 14(8DI + 6DO)
Customize
1. Compact & cost-effective: part of the DVP-SS2 series 2. PID control (basic, 4 sets) 3. Real-Time Clock: Optional via add-on 4. Expansion Support: Digital/Analog/Temp modules via DVP-S series modules 5. Mounting: DIN rail compatible 6. Supports MODBUS ASCII/RTU, PLC Link 7. Built-in RS-232 & RS-485 port
1. I/O Configuration: a. Total I/O: 14 points Digital Inputs: 8 Digital Outputs: 6 (Transistor type – NPN) 2. Program Capacity: 8k steps 3. Data Registers: 5k words 4. Execution Speed: 0.35 μs/basic instruction 5. Pulse Output: 2 points (max 10 kHz each) 6. High-Speed Input: 2 points (max 5 kHz each)
