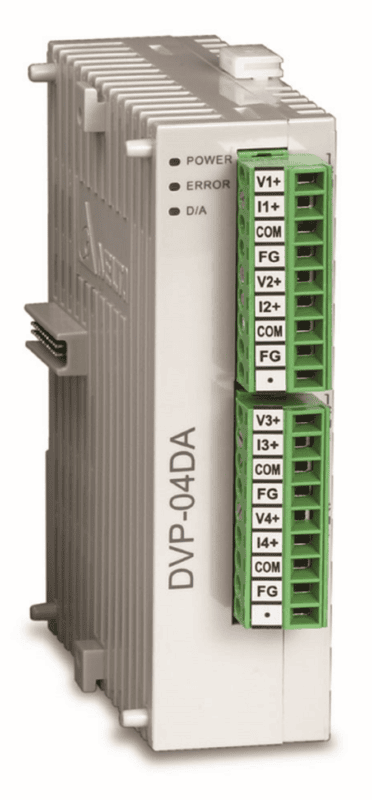

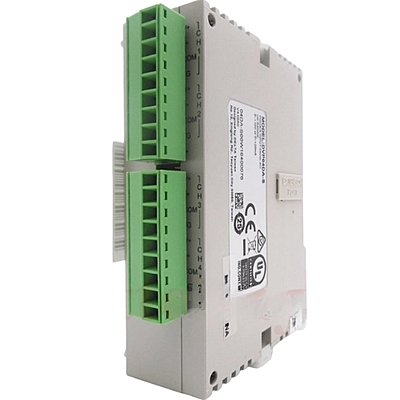

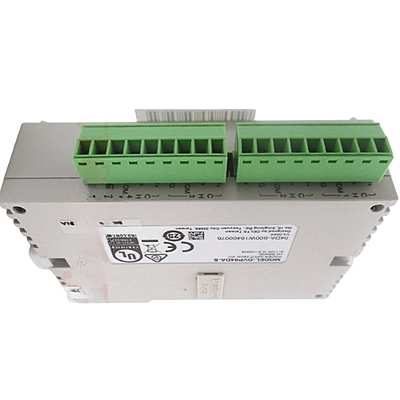

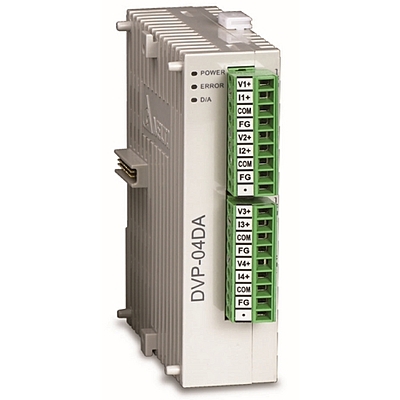

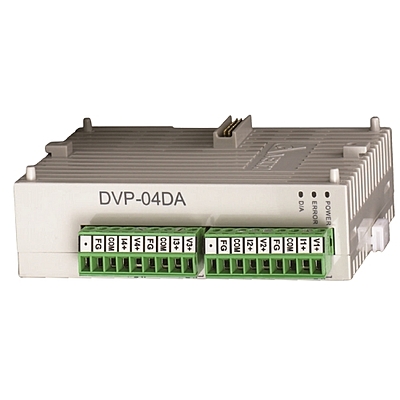

Delta Analog Output Module DVP04DA-S
Non-returnable
₹9,190.00
Tags:
Features / Functions
1. Analog Output Channels: 4 channels for analog output. 2. Voltage Output Range: 0 to 10V, with a resolution of 2.5 mV. 3. Current Output Range: 0 to 20 mA, with a resolution of 5 µA. 4. Input Voltage: Operates on 100 to 240 VAC or 24 VDC. 5. Connection Type: Pluggable screw terminals for easy wiring. 6. Compatibility: Compatible with Delta's DVP-S Series PLCs. Specifications
1. Configuration: Supports configuration via FROM/TO commands in DVP-PLC SS/SA/SX MPU programs. 2. Status Indicators: Equipped with POWER, RUN, and ERROR indicators for operational status monitoring. 3. Storage Temperature: -20°C to 75°C. 4. RS-485 Port: Built-in RS-485 interface for communication. 5. Output Resolution: 12-bit resolution for both voltage and current outputs. 6. Power Consumption: 4W, supplied from an external power source. Choose Quantity
