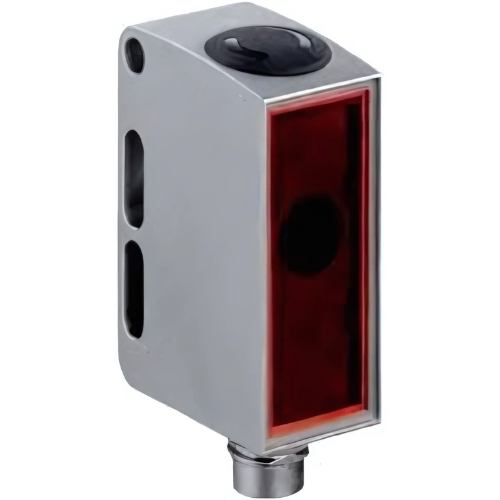

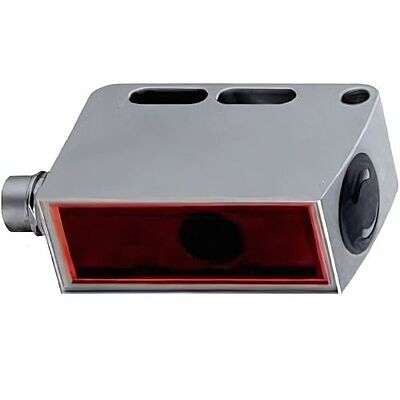

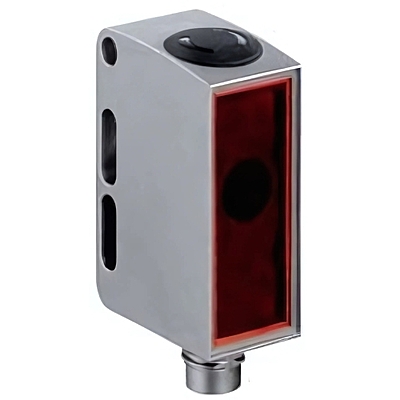

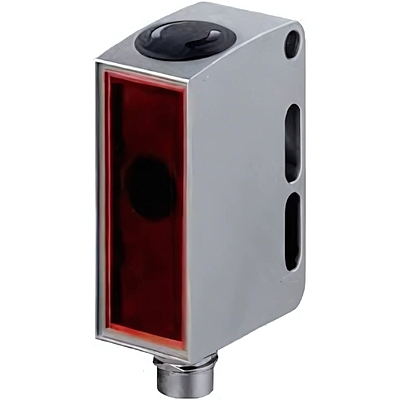

HRTR 55/66-S-S8 Diffuse sensor with background suppression
Non-returnable
Price:
₹15,110.76
Out of stock
HRTR 55/66-S-S8 - Diffuse sensor with background suppression
Customize
1. Sensing Type: Diffuse with background suppression. 2. Material: Stainless steel (AISI 316L), hygienic design. 3. Range: Up to 200 mm. 4. Light Source: Red LED. 5. Small Spot Size: Precise object detection. 6. Switching Output: PNP, Light/Dark switching. 7. Response Time: Fast, ~0.5 ms. 8. Protection: IP67 / IP69K (high washdown resistance). 9. Setup: Teach-in button & LED indicators. 10. Mounting: Compact M18 cylindrical housing.
1. Voltage: 10–30V DC 2. Current Output: Max 100 mA 3. Ambient Temp: -40 °C to +60 °C 4. Beam Path: Divergent 5. Protective Features: Polarity reversal protection, short-circuit protection 6. Switching Frequency: 1,000 Hz 7. Readiness Delay: 300 ms 8. Connector Type: M8, 4-pin, male, A-coded 9. Certifications: c UL US, ECOLAB, CleanProof+
